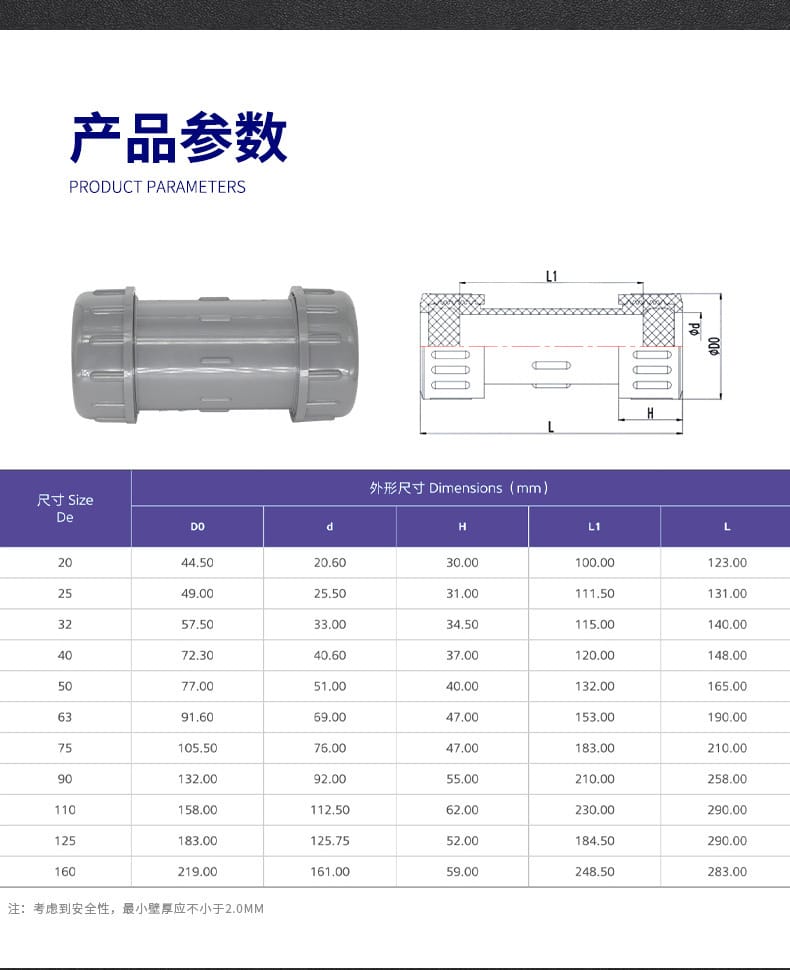

| 规格尺寸 (De/mm) | DO (mm) | d (mm) | H (mm) | L1 (mm) | L (mm) |
|---|---|---|---|---|---|
| 20 | 44.50 | 20.60 | 30.00 | 100.00 | 123.00 |
| 25 | 49.00 | 25.50 | 31.00 | 111.50 | 131.00 |
| 32 | 57.50 | 33.00 | 34.50 | 115.00 | 140.00 |
| 40 | 72.30 | 40.60 | 37.00 | 120.00 | 148.00 |
| 50 | 77.00 | 51.00 | 40.00 | 132.00 | 165.00 |
| 63 | 91.60 | 69.00 | 47.00 | 153.00 | 190.00 |
| 75 | 105.50 | 76.00 | 47.00 | 183.00 | 210.00 |
| 90 | 132.00 | 92.00 | 55.00 | 210.00 | 258.00 |
| 110 | 158.00 | 112.50 | 62.00 | 230.00 | 290.00 |
| 125 | 183.00 | 125.75 | 52.00 | 184.50 | 290.00 |
| 160 | 219.00 | 161.00 | 59.00 | 248.50 | 283.00 |
注：为确保系统安全性，产品最小壁厚严格控制在 ≥2.0mm；额定工作压力为 10KG。
