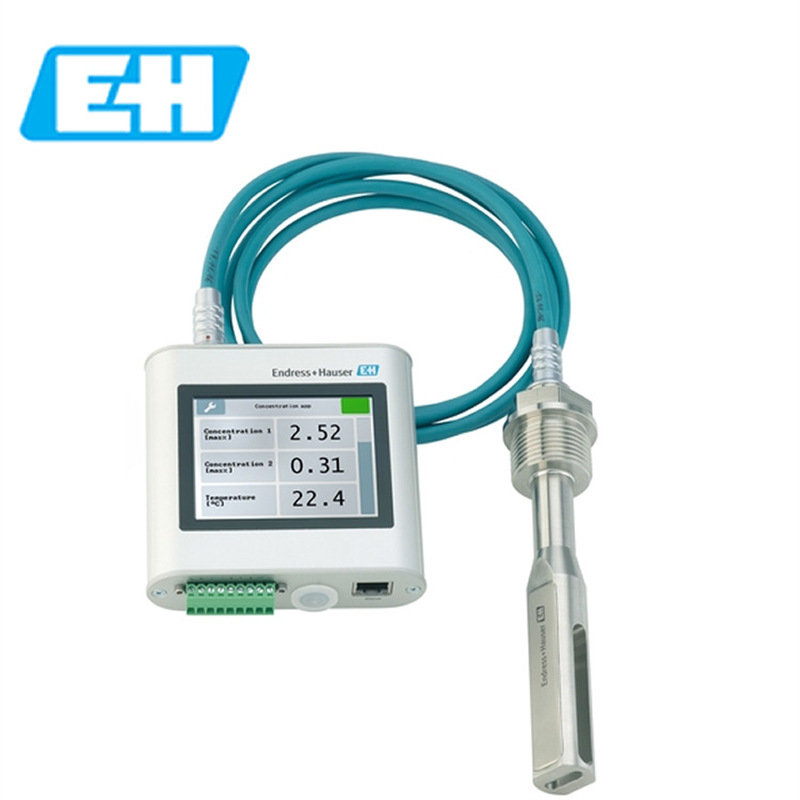

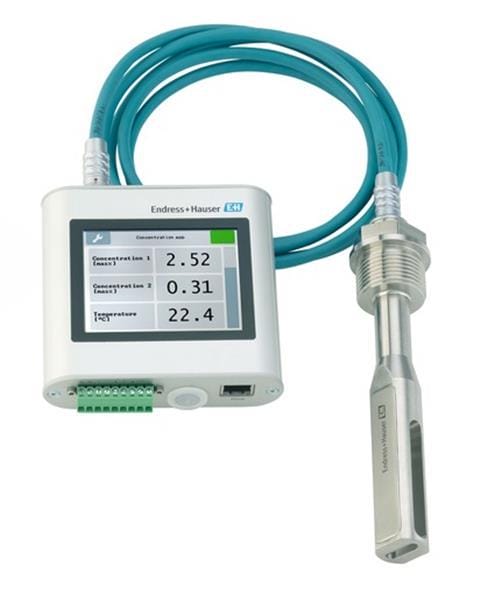

The insertion measuring device Teqwave I was developed for accurate real-time liquid analysis in vessels and larger pipes. Dedicated to in situ concentration measurement, Teqwave monitors up to four measured values and thus reduces operational expenditure of a skid. Match your Teqwave transmitter perfectly to your production needs: You can individually define and extend your application range by use of the flexible app concept.
Easy and efficient – real-time in situ liquid analysis
Full transparency – constant monitoring of product quality without sampling
Highest process safety – reliable metering due to robust, maintenance-free sensor
Cost-saving – fewer measuring points due to multivariable measurement
Customized usage – innovative app concept, easily expendable for changing measuring tasks
Simplified process control – user-friendly operation and clear status visualization
Local data backup – integrated data storage for measured values up to 7,5 years
The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
Continuous concentration measurement of liquids in vessels or large pipes.
Device properties
Accurate and independent of flow profile
Insertion length: 180 mm (7") or 500 mm (20")
Industry-compliant, easy installation via DIN rail
3.5" TFT color touch display or LED indication
4-20 mA, Modbus TCP
Ultrasonic concentration
智能的插入式浓度测量仪表，应用灵活，为您量身定制。使用简单、高效：实时在线液体分析。能够连续测量容器或大口径管道中液体的浓度。
完全透明：不间断监测产品质量，无需抽检。最高过程安全性：传感器坚固耐用，免维护，计量可靠。使用经济：多变量测量所需测量点数量更少。高测量精度，不受流场的影响。插入深度：180 mm (7")或500 mm (20")。
按需定制：创新的app理念，改造升级简单，轻松应对各类测量任务。简化过程控制：操作友好，状态显示清晰。现场数据备份：内置测量值数据存储单元，保存时间长达7.5年。符合工业标准，便捷地安装在DIN导轨上。3.5" TFT彩色显示屏或LED指示灯标识。
插入深度：180 mm (7")或500 mm (20")
浓度
密度
声速
温度
密度：±0.01g/cm³
温度：±0.5K
声速：2m/s
浓度符合浓度app中的数据表，最大为0...100 %
声速：600...2000 m/s
温度浓度app数据表，最高0...+100 °C (32...+212 °F)
密度：0.7...1.5 g/cm³
最大16 bar (232 psi)，20 °C (68 °F)时
0...100 °C (32...212 °F)
0...+50 °C (32...122 °F)
不锈钢V4A 1.4571
传感器：IP68（带电缆插头）、IP66（无电缆连接头）
变送器：IP40
LED状态指示灯
TFT彩色触摸显示屏
4...20 mA / Modbus TCP
24 VDC（18...35 V）
CE认证、C-Tick认证
......................................................................................................................................................................................................................................................................................................................................
