| 参数项 | 规格值 |
|---|---|
| 测量原理 | 电磁 |
| 公称口径范围 | DN 25 至 2400（1" 至 90"） |
| 接液部件材质 | 衬里：聚氨酯、硬橡胶、PTFE；电极：1.4435 (316L)、合金C22、钽 |
| 测量变量 | 体积流量、电导率、质量流量 |
| 最大测量误差 | 标准：±0.5% o.r. ±1 mm/s；可选：±0.2% o.r. ±2 mm/s（Flat Spec） |
| 测量范围 | 9 dm³/min 至 162 000 m³/h（2.5 gal/min 至 100 000 gal/min） |
| 最大过程压力 | PN 40、Class 300、20K |
| 介质温度范围 | 硬橡胶衬里：0 至 +80°C；聚氨酯衬里：-20 至 +50°C；PTFE衬里：-20 至 +90°C |
| 环境温度范围 | 碳钢法兰：-10 至 +60°C；不锈钢法兰：-40 至 +60°C |
| 传感器外壳材质 | DN 25-300：AlSi10Mg涂层；DN 25-2400：碳钢保护漆；可选聚碳酸酯或1.4409 (CF3M) |
| 变送器外壳材质 | AlSi10Mg涂层、1.4409 (CF3M) 类似316L、卫生型不锈钢 |
| 显示/操作 | 4行背光显示，触摸键操作（外部），支持远程显示 |
| 输出 | 3路输出：4-20mA HART（有源/无源）、脉冲/频率/开关输出、双脉冲输出、继电器输出 |
| 输入 | 状态输入、4-20mA输入 |
| 数字通信 | HART、PROFIBUS DP/PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA |
| 电源 | DC 24V、AC 100-230V、AC 100-230V/DC 24V（非危险区） |
| 产品安全性 | CE、C-tick、EAC标志 |
| 功能安全性 | 符合IEC 61508，适用于IEC 61511安全相关应用 |
| 计量认证 | 根据ISO/IEC 17025校准，NAMUR，心跳技术符合ISO 9001:2008（TÜV认证） |
| 压力认证 | CRN、PED |
| 材料证书 | 3.1材料证书 |

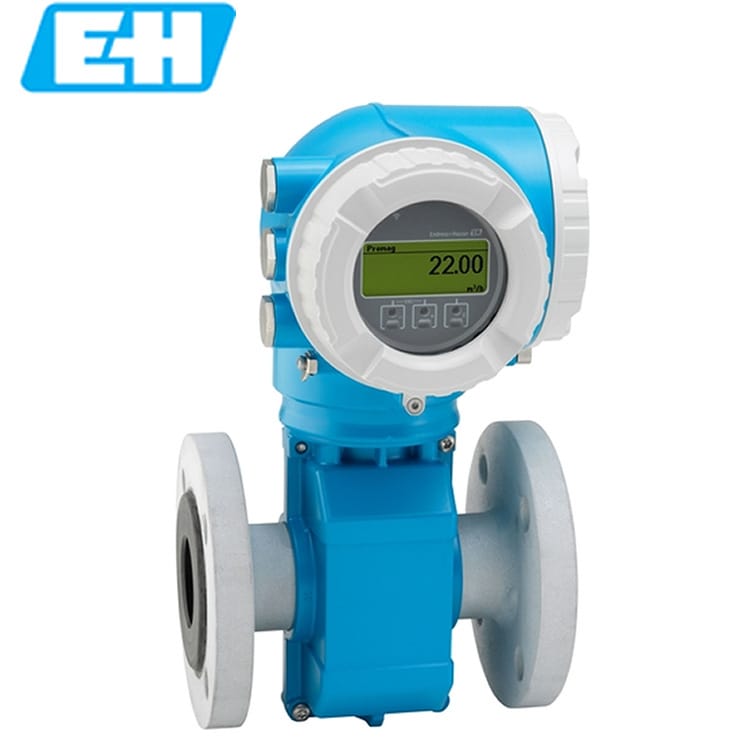

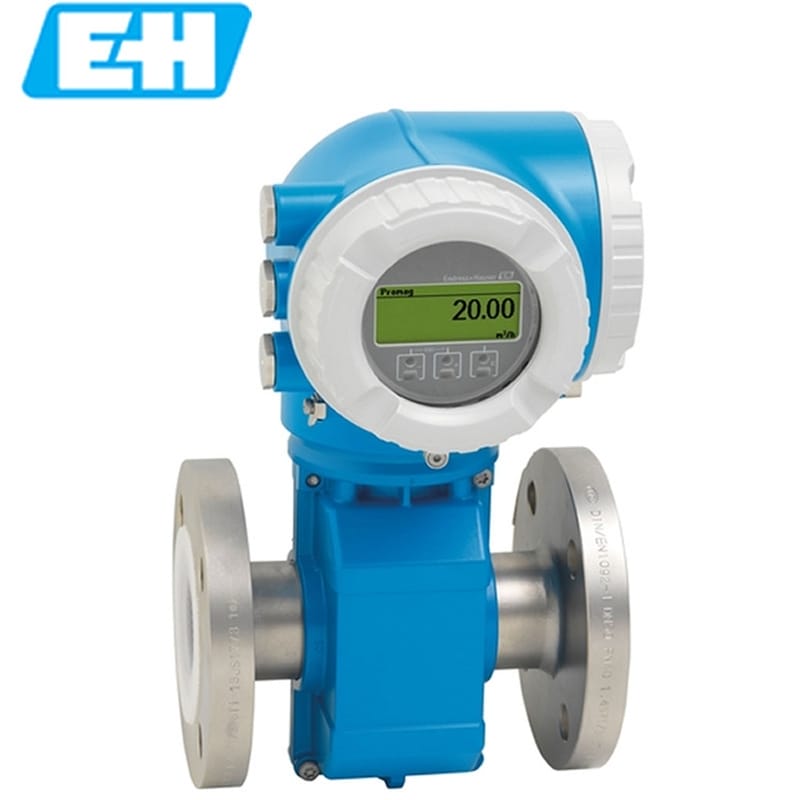

Promag W 300高精度电磁流量计用于水和污水测量，能够在危险区和严苛工况下可靠工作。一体化型变送器使用灵活，系统集成方便：允许单端操作和远程操作，改进接线方式。心跳技术确保合规，过程始终安全。
设计灵活：传感器配备焊接式或松套法兰过程连接
测量可靠：即使不预留前直管段长度也能高精度输出测量值
提高装置稳定性：传感器满足行业专属要求
完整查看过程信息和诊断信息：提供多种用户自定义输入/输出组合方式和现场总线
降低复杂性和多变性：允许用户自定义输入/输出功能
内置心跳校验功能
双向测量原理完全不受压力、密度、温度和粘度的影响
专用于工业或市政水和污水测量
设备特性
国际饮用水认证
一体式双腔室外壳，最多带3路输入/输出
背光显示、触摸键控制和WLAN访问
提供分离型显示单元
电磁
Specialist for demanding water and wastewater applications with a compact, easily accessible transmitter. Dedicated to the measurement of industrial or municipal water and wastewater.
Flexible engineering – sensor with welded or lap-joint process connections. Reliable measurement – accurate measured values even with 0 DN inlet run. Improved plant availability – sensor compliant with industry-specific requirements. International drinking water approvals. .
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.
DN 25 to 2400(1 to 90")
Liner: Polyurethane; Hard rubber, PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
Volume flow, conductivity, mass flow
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec
9 dm³/min to 162 000 m³/h (2.5 gal/min to 100 000 gal/min)
PN 40, Class 300, 20K
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
DN 25 to 300 (1 to 12"): AlSi10Mg, coated
DN 25 to 2400 (1 to 90"): Carbon steel with protective varnish
Sensor connection housing (standard): AlSi10Mg, coated
Sensor connection housing (option): Polycarbonate; 1.4409 (CF3M) similar to 316L
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available
3 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output
Status input 4-20 mA input
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA
DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
CE, C-tick, EAC marking
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV-attestation)
CRN, PED
3.1 material
ACS, KTW/W270, NSF 61, WRAS BS 6920
......................................................................................................................................................................................................................................................................................................................................
