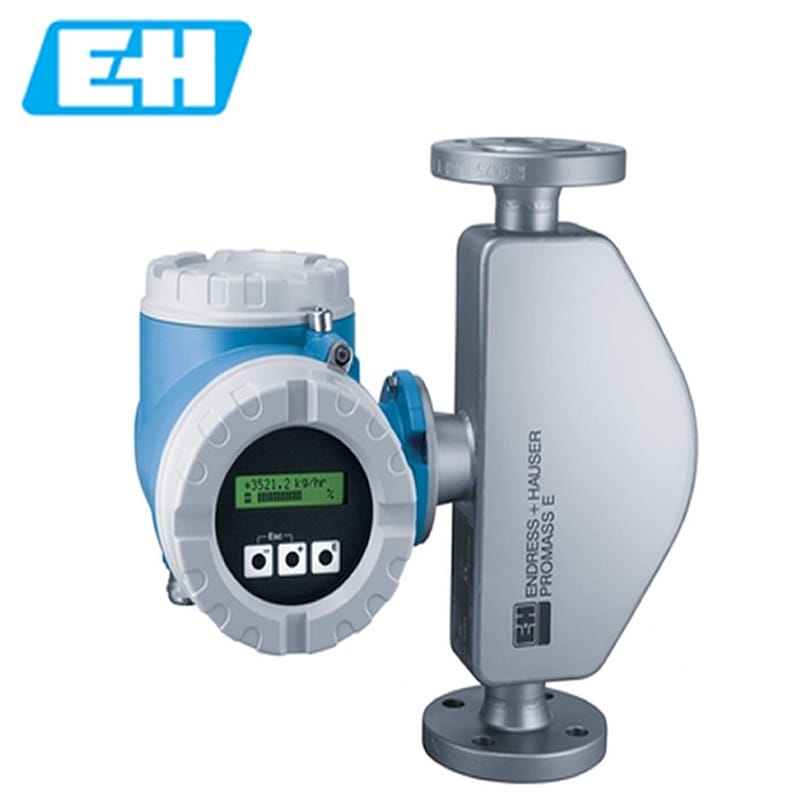

Promass E系列质量流量计因其高性价比的解决方案赢得了良好的声誉。与带有触摸控制、四线显示与扩展功能（如填充、配量、浓度测量或高级诊断）的Promass 83变送器配套使用，Promass 83E可广泛应用于液体与气体流量的精确测量。
模块化的设计与操作概念，带来更高的效率
可选择批量测量与浓度测量软件作为扩展功能
带诊断功能与数据备份功能，提升过程质量
一体化多变量流量测量
平衡的双管测量系统设计，抗震性好
结构坚固，不受外部管道作用力影响
无需进出口直管段，安装简便
科氏力流量测量原理不受流体的物理性质影响，例如粘度和密度．
性能参数
– 质量流量（液体）：±0.15% o.r.
– 质量流量（气体）：±0.75% o.r.
过程温度可达+140 °C (+284 °F)
安全隔膜（可选）
提供保证的产品质量，符合CIP/SIP卫生标准
保养成本低
坚固的现场(铝)外壳，具有67年知识产权保护
食品行业/卫生部门审批
3A认证
科里奥利质量流量
The flowmeter for minimized cost of ownership with extended transmitter functionality. Highly accurate measurement of liquids and gases for a wide range of standard applications.
Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Compact dual‐tube system. Medium temperature up to +140 °C (+284 °F).
Quality – software for filling & dosing, density & concentration, advanced diagnostics. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing. 4‐line backlit display with touch control. Device in compact or remote version.
DN 8 to 80 ( to 3")
Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)
Mass flow, density, temperature, volume flow, corrected volume flow, reference density
Mass flow (liquid): ±0.15 % (standard), 0.10 % (option)
Volume flow (liquid): ±0.15 %
Mass flow (gas): ±0.75 %
Density (liquid): ±0.0005 g/cm³
0 to 180 000 kg/h (0 to 6600 lb/min)
PN 100, Class 600, 63K
–40 to +140 °C (–40 to +284 °F)
Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)
1.4301 (304), corrosion resistant
Powder‐coated die‐cast aluminium
1.4301 (304), sheet
CF3M (316L), cast
IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure
4‐line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency/switch output (passive)
Relay
2 modular inputs:
Status
0‐20 mA (active)/4‐20 mA (active/passive)
HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP
DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)
ATEX, IECEx, FM, CSA, NEPSI, TIIS
CE, C-tick, EAC marking
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
Marine approval
PED, CRN
3.1 material
......................................................................................................................................................................................................................................................................................................................................
