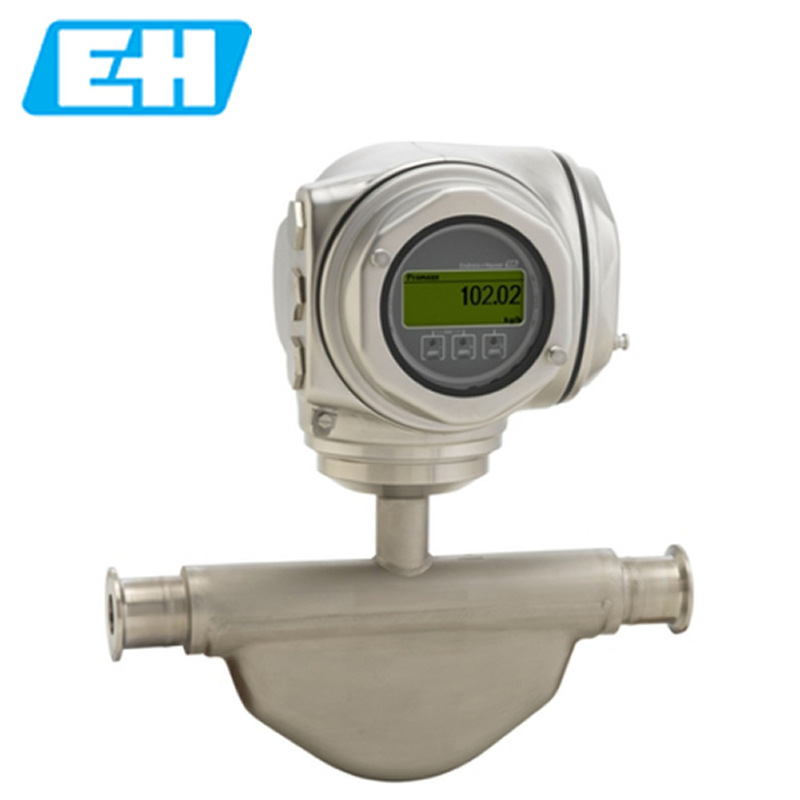

Promass E坚固耐用,是长期使用的经济型解决方案,用于化工行业的多种标准应用中进行高精度液体和气体测量。Proline E 200是真正的回路供电两线制流量计,使用经济,能够无缝集成至现有系统中。流量计采用本安型设计(Ex ia),在危险区中具有最高操作安全性。内置Heartbeat Technology (心跳技术),确保过程始终安全。
使用经济:多用途仪表;传统体积流量计的替代优选
较少过程测量点:多参数测量(流量、密度、温度)
节省安装空间:无前/后直管段长度要求
仪表接线方便:独立接线腔
操作安全:背光显示、触摸键控制,无需打开仪表
自带验证功能:内置Heartbeat Technology (心跳技术)
测量原理不受流体物理特性的影响(例如:粘度和密度)
在标准应用中进行液体和气体的高精度测量,应用广泛
仪表特点
一体式双测量管传感器
介质温度:max. +150 °C (+302 °F)
过程压力:max. 100 bar (1450 psi)
回路供电两线制技术
坚固耐用的双腔室外壳
工厂安全性:通过多项国际认证(SIL,危险区)
科里奥利质量流量
The genuine loop‐powered flowmeter for minimized cost of ownership. Highly accurate measurement of liquids and gases for a wide range of standard applications.
Cost-effective – multi-purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Spacesaving installation – no in/outlet run needs. Compact dual-tube sensor. Medium temperature up to +150 °C (+302°F).
Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop‐powered technology. Robust dual-compartment housing.
DN 8 to 50 ( to 2")
Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)
Mass flow, density, temperature, volume flow, corrected volume flow, reference density
Mass flow (liquid): ±0.25 %
Volume flow (liquid): ±0.25 %
Mass flow (gas): ±0.75 %
Density (liquid): ±0.0005 g/cm³
0 to 70 000 kg/h (0 to 2570 lb/min)
PN 100, Class 600, 63K
–40 to +150 °C (–40 to +302 °F)
–40 to +60 °C (–40 to +140 °F)
1.4301 (304), corrosion resistant
AlSi10Mg, coated
IP66/67, type 4X enclosure
4‐line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available
4‐20 mA HART (passive)
4‐20 mA (passive)
Pulse/frequency/switch output (passive)
None
HART, PROFIBUS PA, FOUNDATION Fieldbus
DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch)
DC 18 to 30 V (20 mA HART, 4‐20 mA)
DC 9 to 32 V (PROFIBUS PA)
ATEX, IECEx, cCSAus, JPN
CE, C-Tick
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
PED, CRN
3.1 material
3-A, EHEDG, cGMP
......................................................................................................................................................................................................................................................................................................................................
